How it works
LiDAR (Light detection and ranging) scanning is an advanced mapping technology which uses radar light to measure and plot three dimesional built environments.
At Evolution Digital Construction we utlise LiDAR to accurately capture and measure construction sites.
With LiDAR we can catch discrepencies and foresee adjustments in real time.
From floor flatness, to wall verticality, to install verification, LiDAR scanning removes the guess work and speeds up the design to build process.
Our spatial consulting expertise will take your project to the next level.
Partner with us today
The process
Our efficient and accurate on site process enables us to capture and verify large as-built surfaces in a short period of time.
1
Project Planning
The planning phase defines the project scope and objectives. Here, we identify key areas and structures to be scanned and schedule the scanning to align with the site’s demolition program.
2
Site Preparation
Before scanning can commence, we ensure the site is accessible and safe. Obstructions that might interfere with the scan are cleared and we then create reference points or targets, if required.
3
Scanning Execution

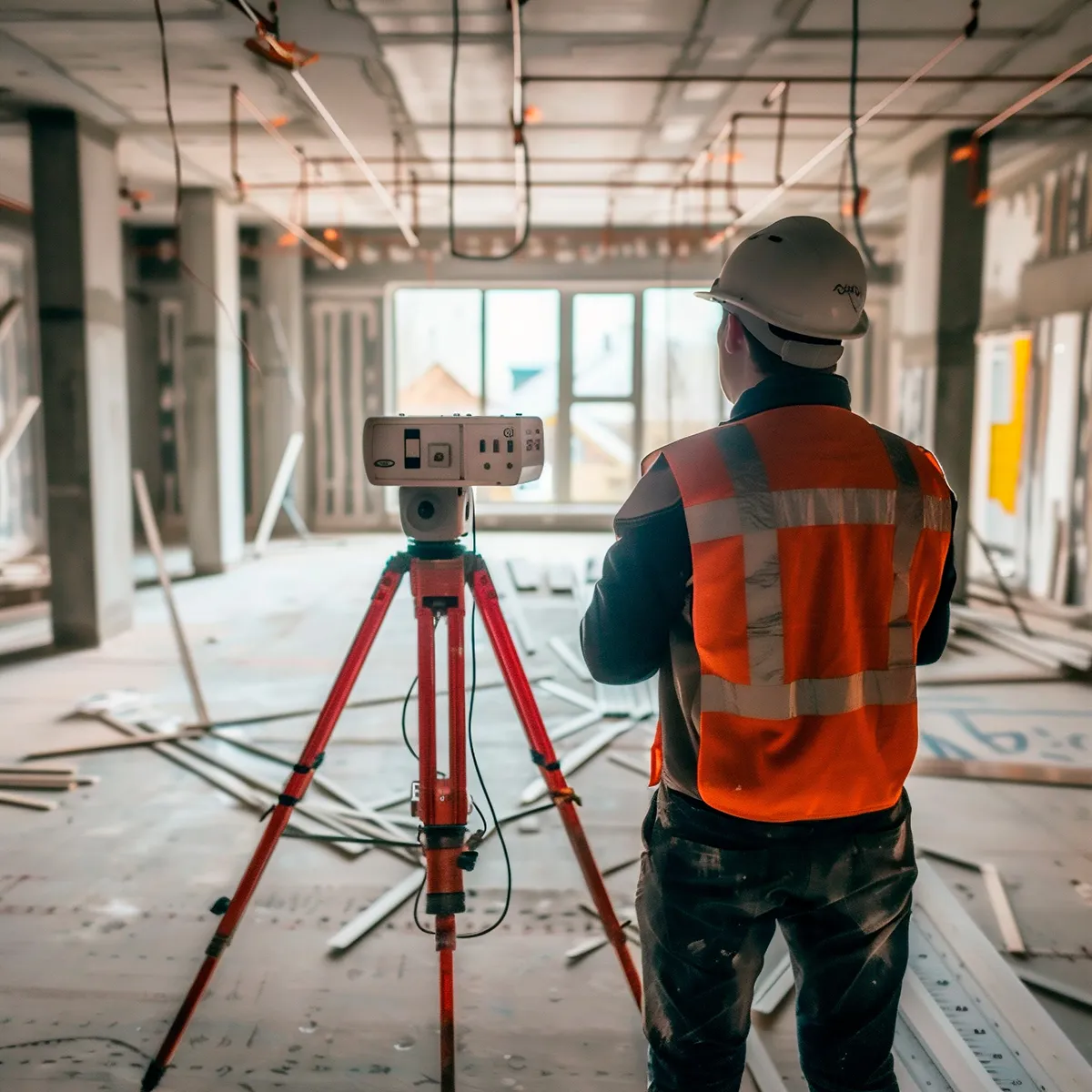

To execute the scan, we position the 3D laser scanner at strategic locations. Multiple scans are performed, covering all necessary angles and areas. As the scanning continues, we adjust the scanner settings for optimal data capture (resolution, range, etc.).
4
Data Processing
The scan data is transferred to processing software, where we align and merge multiple scans to create a complete 3D model. We also clean up the data by removing noise and irrelevant points.
5
Model Creation/Deliverables

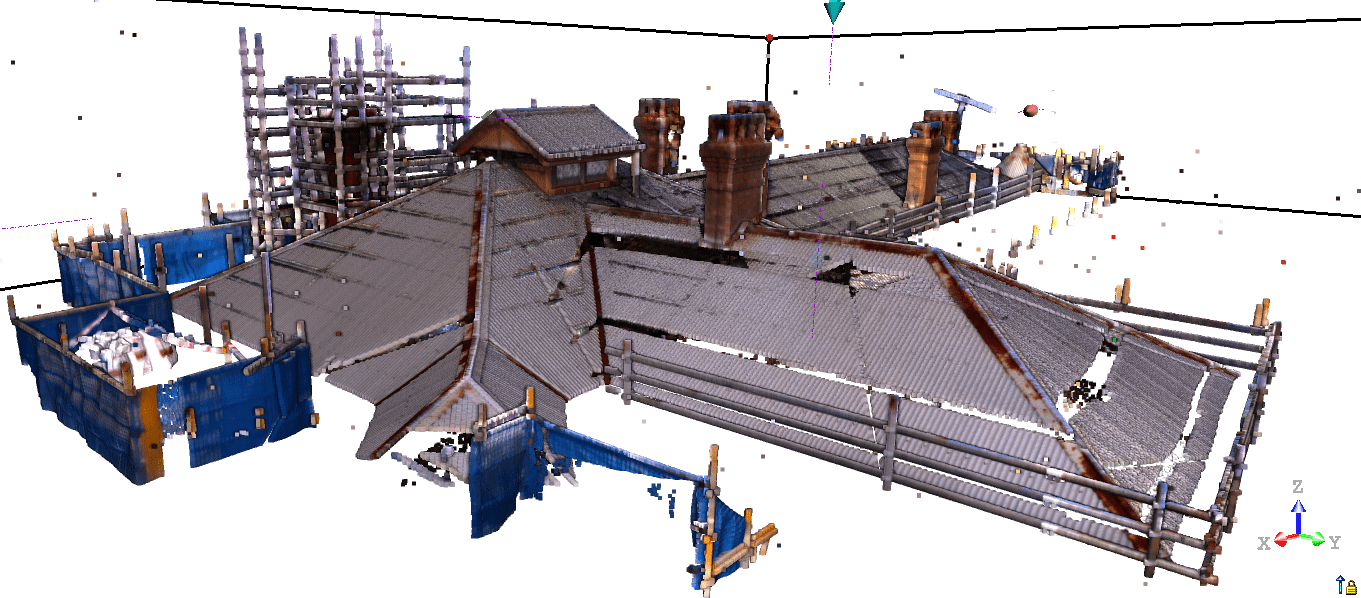

We generate a detailed 3D model from the processed scan data. Key features and structures are annotated and labelled, and the model is verified for accuracy against the project requirements.
6
Analysis and Reporting
The final stage involves a detailed analysis of the model and a report that highlights key measurements and any areas of clash detection.
See it in action
Watch 3D laser scanning in action as it captures millions of data points to create a comprehensive virtual representation of the construction site.
